SKU: JBM-54386

Electric Vehicle Battery Installation Lift, 1200 kg

$3562.90

Earn at least 2% points on purchases or save up to 15%. Learn more.

1200 kg capacity covers all popular EV and hybrid batteries

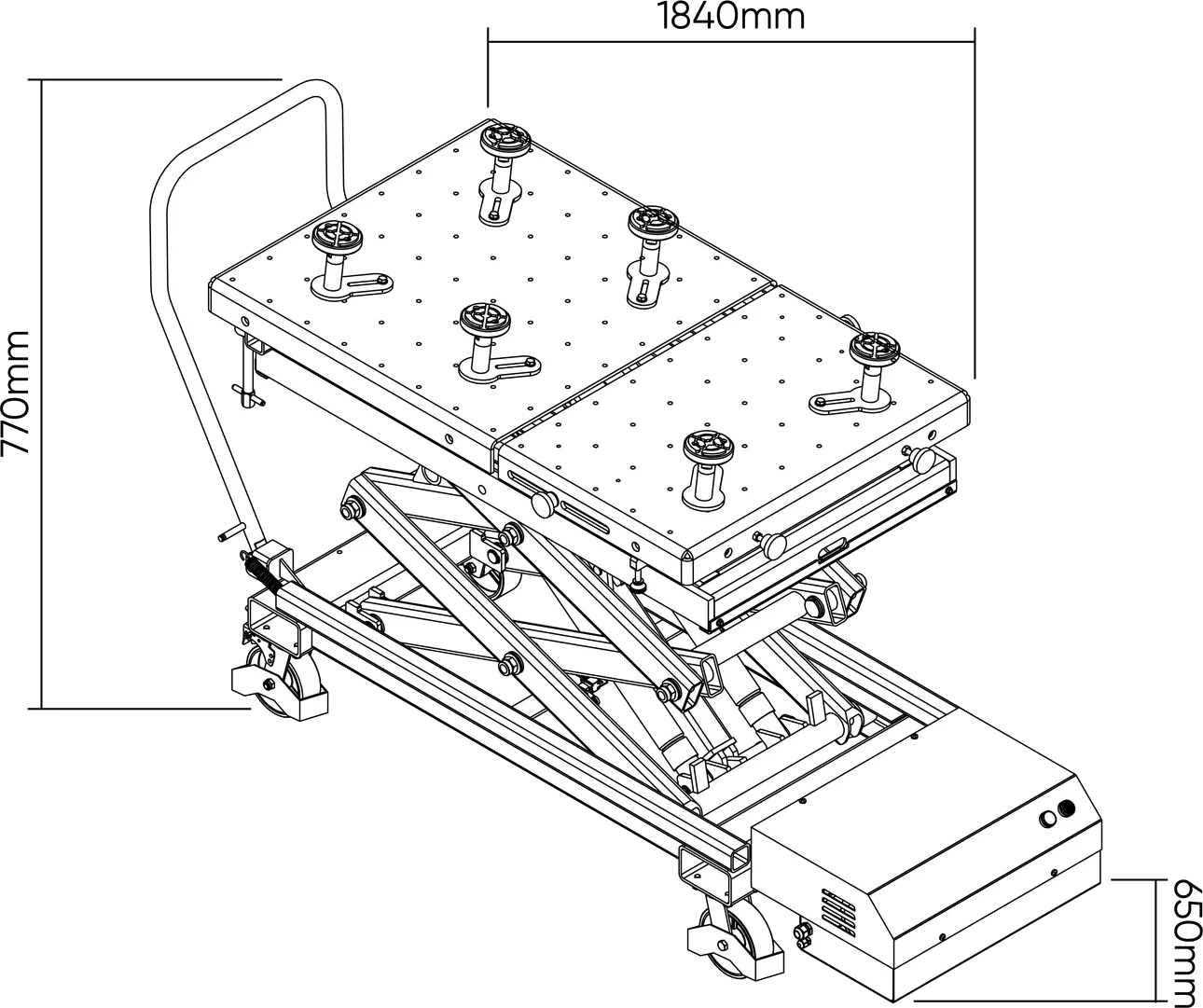

Height adjusts from 650 to 1840 mm for ergonomic work
Platform extends to 1400 mm wide for a stable battery hold
220V electric drive lifts in a 24-second cycle
Bracket included, ready to use on arrival
CE certified for European safety compliance

$3562.90

FREE Shipping

Delivery to .

Get it Thu, Jul 23 – Wed, Jul 29. DetailsShipping Rates & Policies• All products currently ship free, except to some remote areas. Verify your delivery address for accurate shipping-cost information.• Unless noted otherwise at checkout, all items ship within two business days of your order.• The delivery date is an estimate and may vary by destination, refer to the actual delivery time.

Add product protection

Accident and warranty protection

In Stock

Reviews0.0

All reviews are from verified purchases

Average rating based on 0 reviews

About this item

Description

Pro-level performance

Electric Vehicle Battery Installation Lift, 1200 kg

JBM

Brand

EV battery lifting table

Type

1200 kg

Capacity

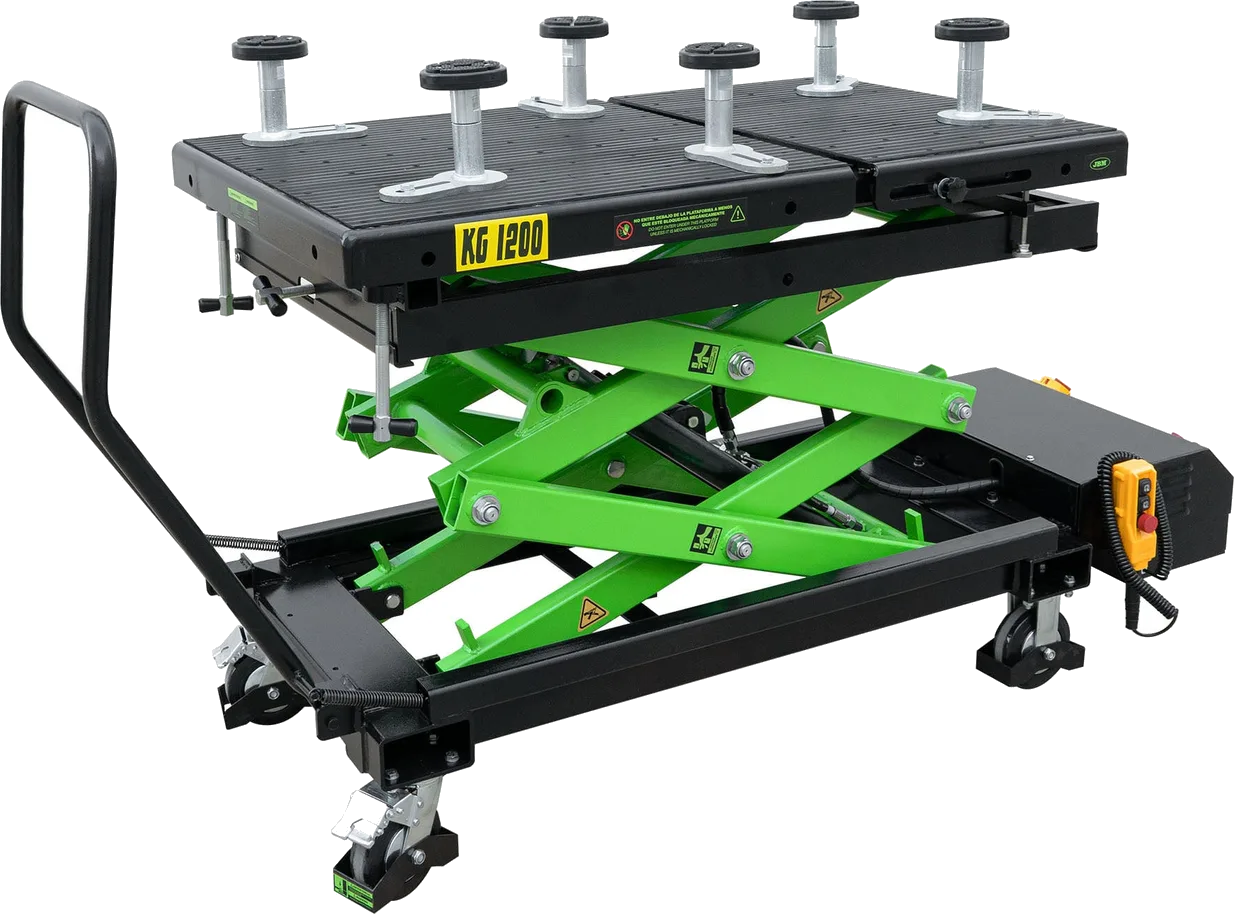

The JBM hydraulic lifting table rated to 1200 kg is purpose-built for installing and removing EV and hybrid traction battery packs safely, with a 220V electric drive that reaches from 650 to 1840 mm.

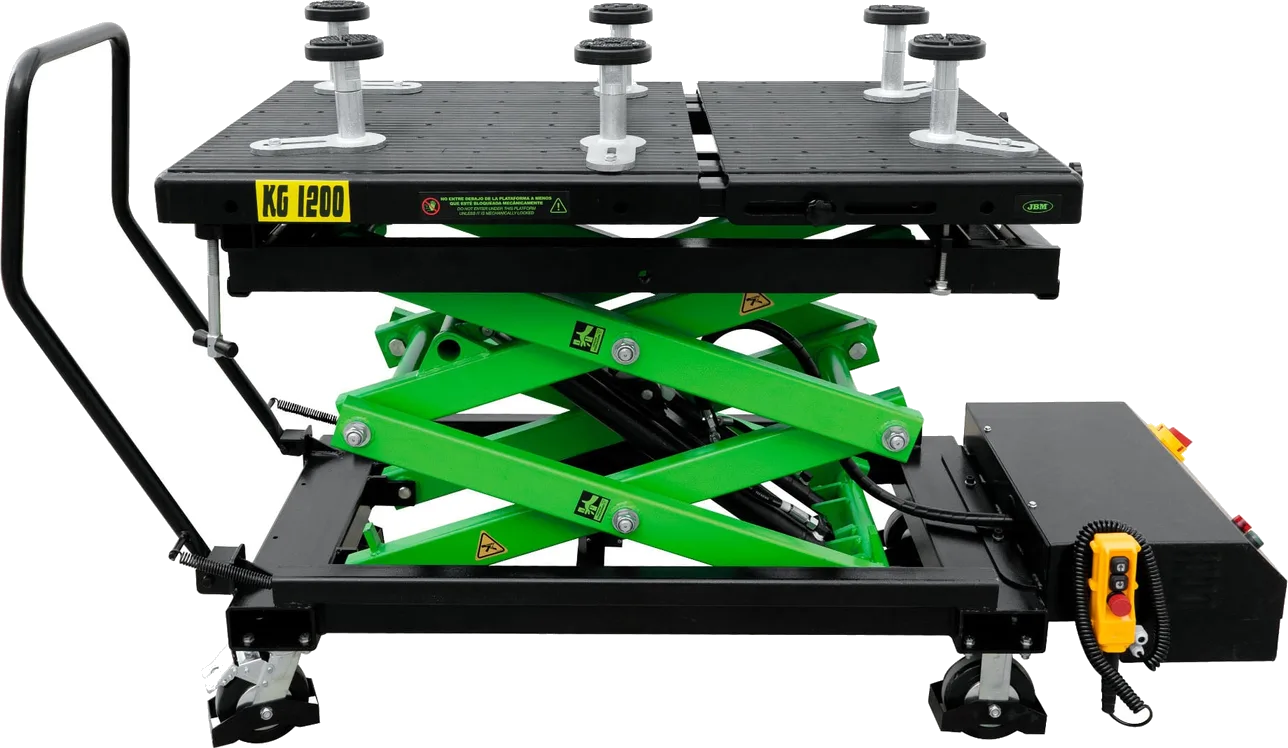

Handles the full EV battery weight range

A 1200 kg load rating covers the complete weight range of modern electric and hybrid vehicle battery packs, from compact hybrids to full-size EVs. The 1290 x 768 mm platform, extendable to 1400 mm wide, supports the battery securely throughout the entire assembly and disassembly procedure.

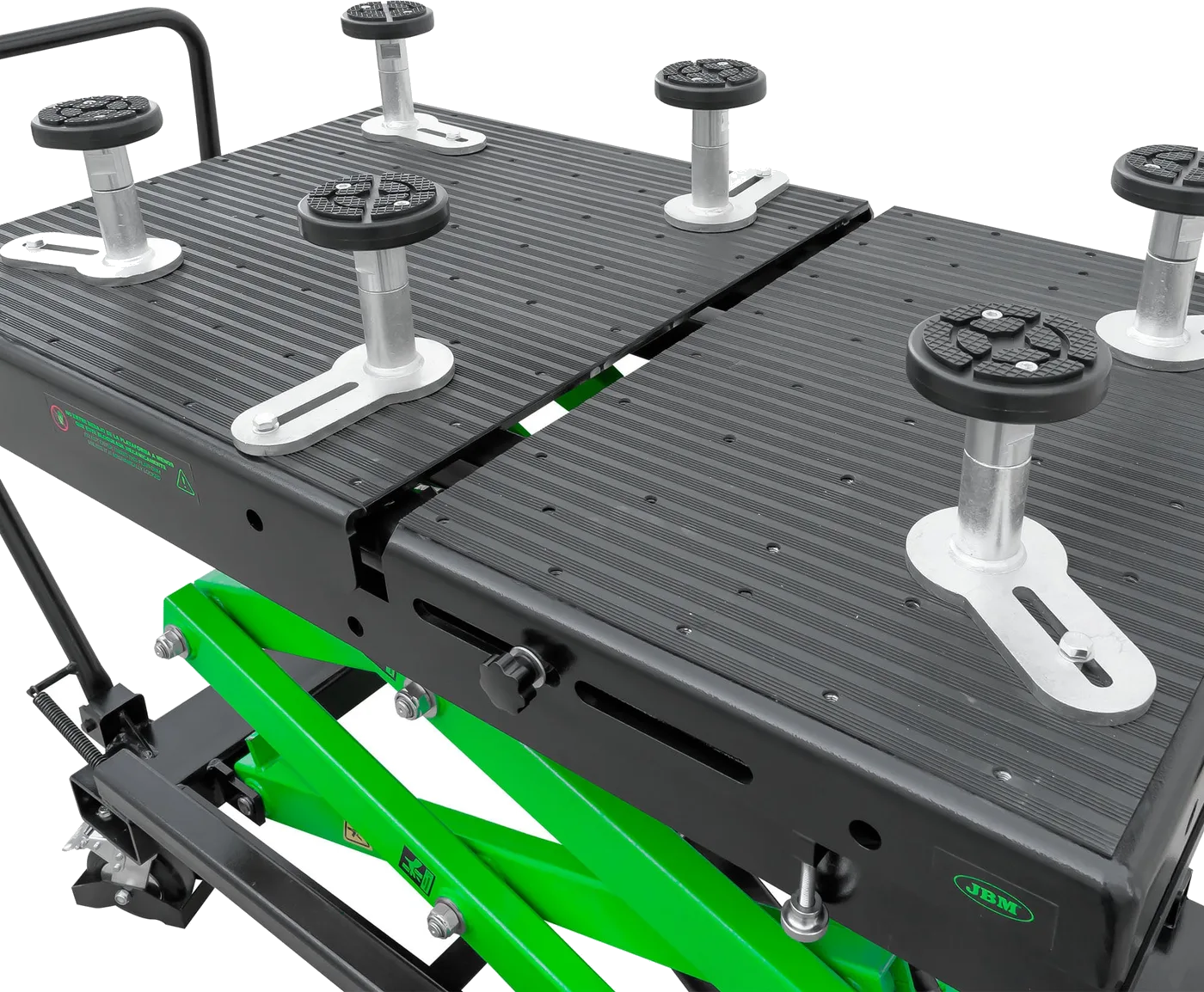

Electric drive for ergonomic positioning

The 220V electric drive raises the platform in a 24-second cycle from 650 mm to 1840 mm, eliminating heavy manual handling at awkward heights and protecting both the technician and the battery. You align the pack accurately at any workstation height without straining or improvising.

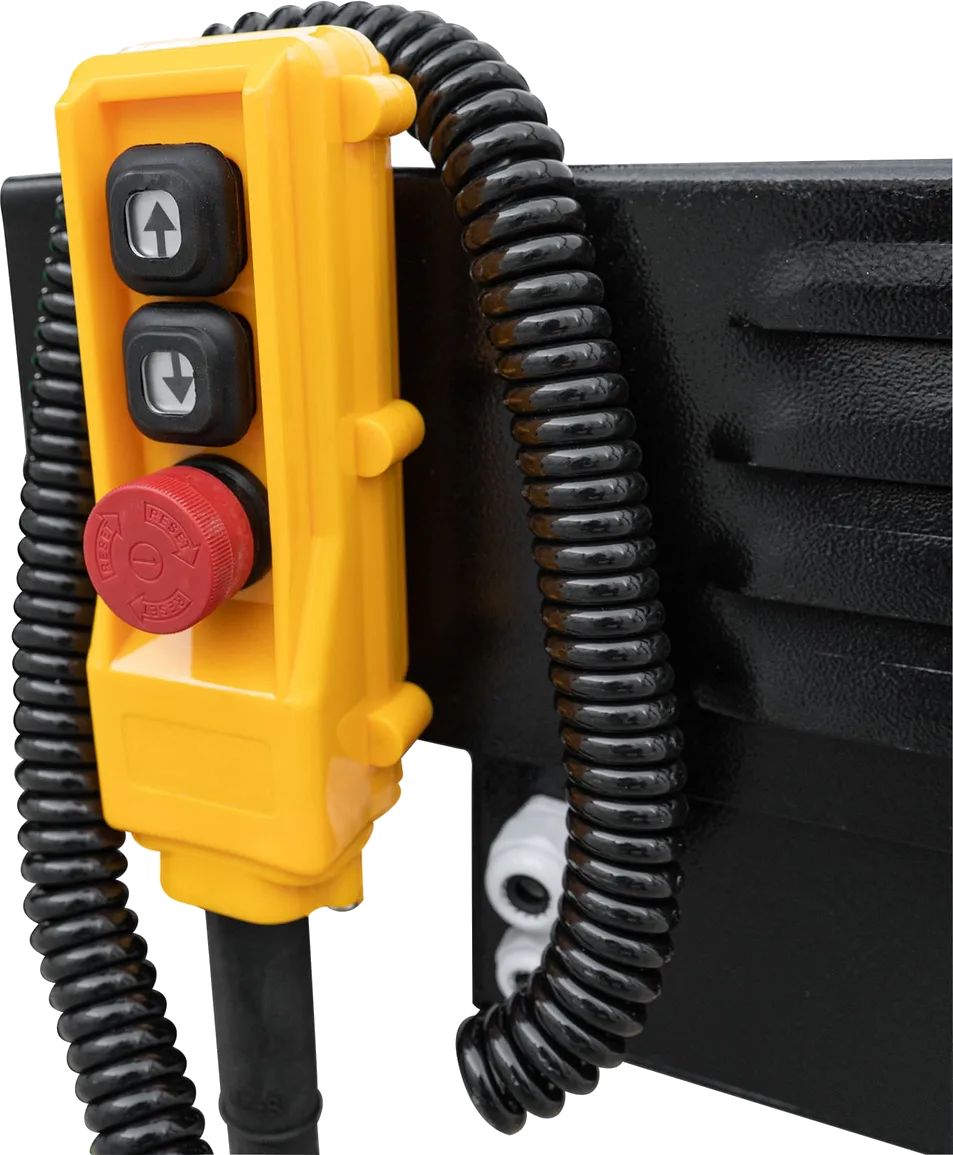

CE certified, ready on arrival

CE certification confirms the table meets European safety requirements for professional workshop use, and a mounting bracket is included so you begin work on day one. Backed by the JBM manufacturer warranty, it is the right long-term investment for authorised EV service centres and workshops servicing hybrid vehicles daily.
